V-Series

V22 Vertical 3 & 4-Axis

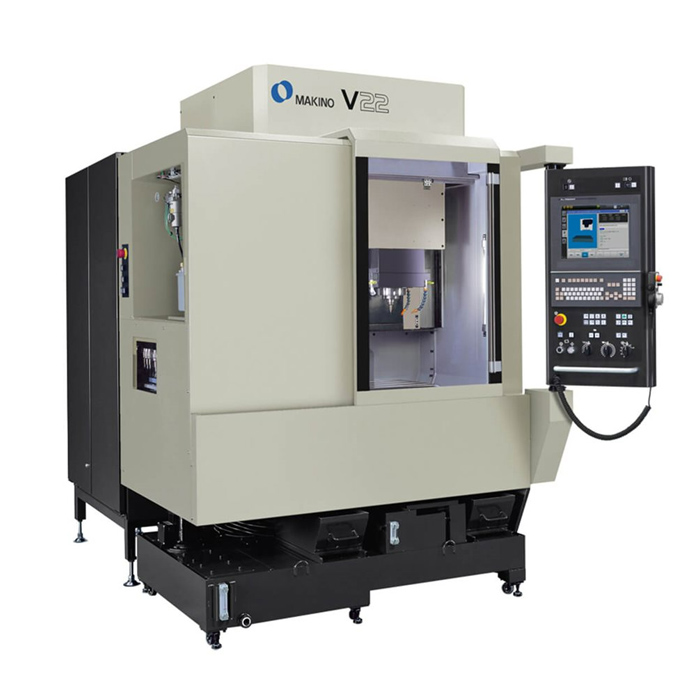

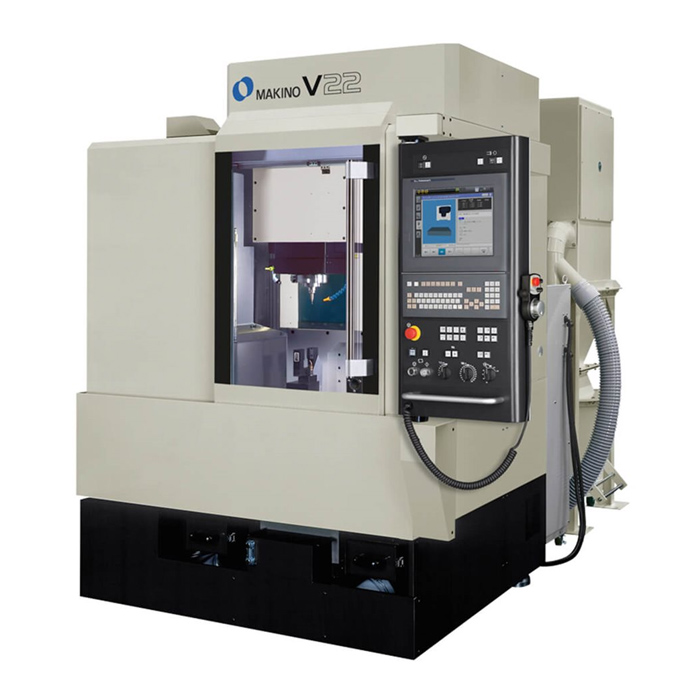

V22 Precision Machining Center


The V22 precision machining center is designed to eliminate vibration, rotational deflection and thermal distortion to ensure precision, accuracy, reliability and excellent stability. Designed to machine complex materials, including ceramics, intricate cores and cavities, the V22 precision machining center offers a standard 8.4 kW continuous 40,000-rpm spindle that is complemented by Makino’s core-cooling and under-race lubrication system.

Machine construction features integrally casted slideways and no overhangs, providing excellent rigidity and dampening characteristics. The rapid traverse allows for fast cutting feeds, which boosts productivity by reducing out-of-cut time and increasing metal-removal rates.




Product Details

The V22 table surface height of 900mm and swing control panel that rotates 180 degrees make operations seem exceptionally easy and effortless.


The machining area is ideal for small workpieces and the compact footprint wastes no floor space. Power consumption (23 kVA) is reduced by approximately half.

The user-friendly, Makino Professional 6 control with Makino’s next-generation Super Geometric Intelligence (SGI.5) software—developed specifically for high-feedrate, tight-tolerance machining of complex, 3-D contoured shapes involving continuous tiny blocks of NC data—ensures production rates faster than standard CNC systems while maintaining unsurpassed accuracy

An optional hybrid automatic tool length measuring device uses the optimum methods to accurately measure and correct the tool tip position and that of the rotating spindle nose. This makes it possible to achieve superior machined surfaces with minimal level differences.


Standard Specifications

Table

450 x 350 mm

X Axis

320 mm

Y Axis

280 mm

Z Axis

300 mm

Spindle RPM

40000

Spindle Taper

HSK-E32

Rapid Traverse

20,000 mm/min

Cutting Feedrate

10,000 mm/min

Maximum Workpiece

450 mm x 475 mm x 200 mm

Maximum Payload

100 kg

ATC Capacity

15 (30, 60)

Tool to Tool

8 sec

Maximum Tool Diameter

32 mm

Maximum Tool Weight

0.5 kg
