D-Series

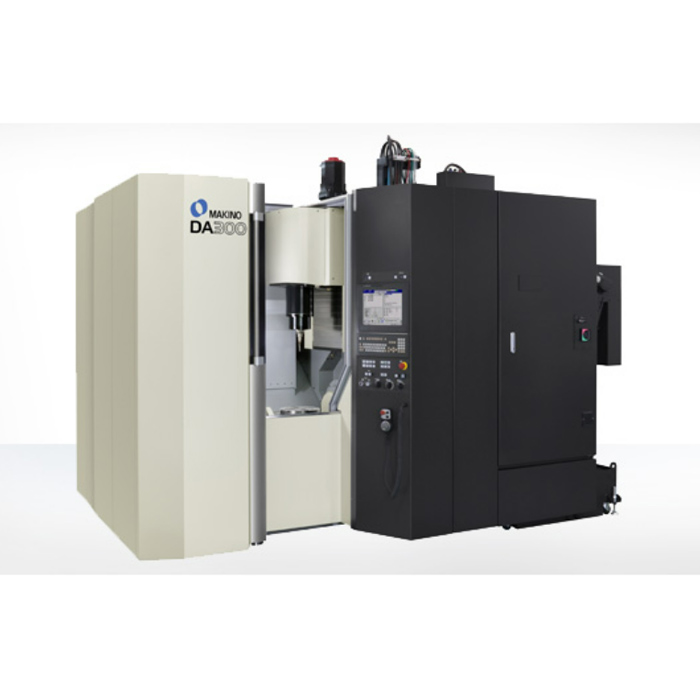

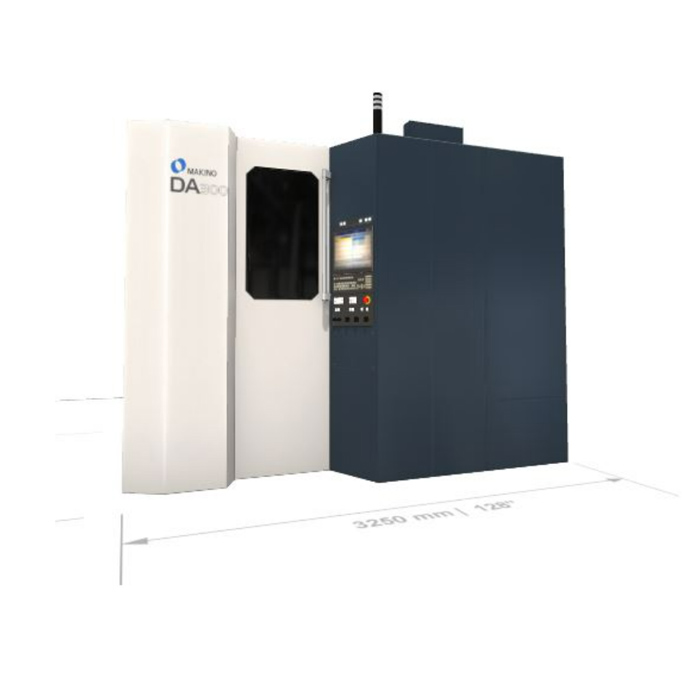

DA300 Vertical 5-Axis

DA300 VMC Reduces Machining Time for Complex Production Parts


The DA300 is inspired by the best design characteristics from both vertical and horizontal machine platforms to deliver the highest productive capabilities for multi–axis workpieces in the very smallest of machine footprints.

These features make the DA300 ideal for single setup, multi–side accessibility, or full contouring capability to quickly and efficiently tackle a wide variety of complex production part applications – typical of industrial hydraulic & pneumatics elements, optical, electrical & semiconductor markets, medical & dental products, die – cast parts, automotive components, aircraft and aerospace parts as well as contract job – shop work.




Product Details

The DA300 Five – Axis Vertical Machining Center combines a rigid structure and high dynamic motion control to significantly reduce part cycle times while maintaining very accurate performance.  Equipped with an integral, DD – motor designed A – Axis and C – Axis, the machine provides five – side access for single set-up production of complex production parts.

At 20,000 RPM, 29.5 HP, HSK – A63, the machine spindle provides the capability to tackle rigorous milling, drilling and tapping tasks associated with a wide variety of production parts.  A standard, 60 tool magazine insures an extensive selection of tooling to address any part configuration.

To further minimize non – cut times, the DA300 is standardly equipped with a Vision BTS (Broken Tool Sensor) outside of the machine work zone to insure tooling integrity – but, not impact part cycle times.

The DA300 integral table rectangular table (340 mm x 300 mm) is prepared with pneumatic ports design to readily integrate into a pallet system providing for quick, efficient part exchange – maximizing machine utilization.

Makino also offers two (2) WPS (Workpiece Pallet System) that can be field added to the DA300 machine.  These can be configured in a 7 pallet arrangement – that is field expandable – or a 19 pallet configuration.  The WPS provides “off – the – shelf” automation for a very productive five – axis machine.

The Makino Professional 6 control takes you from parts to profits with elegant functionality by making the point where human meets machine a seamless transition.  Streamlined screen layouts, operator assistance, new machine functions, and safety enhancements are accelerating and protecting your productivity.  For even greater productivity, Super Geometric Intelligence 5 (SGI.5) insures optimum performance during execution of the tool path – producing the shortest cycle times.


Standard Specifications

Table

300 mm x 340 mm

X Axis

450 mm

Y Axis

620 mm

Z Axis

500 mm

A Axis

150° (+30 to -120)

C Axis

360°

Spindle RPM

20,000 (HSK - A63)

Rapid Traverse

60,000 mm/min

Cutting Feedrate

60,000 mm/min

Maximum Workpiece

450 mm diameter

Maximum Workpiece Size

Stand alone - ø450 x 400mm, Manual with chuck - ø450 x 295mm, WPS - □355 x 295mm

Maximum Workpiece Weight

Stand alone - 2250 kg, Manual with chuck - 215 kg, WPS - 80 kg

Maximum Payload

250 kg

ATC Capacity

60 tools

Chip to Chip

3.5 sec

Maximum Tool Diameter

70mm / 140mm (ALL / ADJ)

Maximum Tool Weight

8 kg


Standard Features

Sixty (60) Tool MagazineMakino Professional 6 ControlCollision Safeguard
20,000 rpm, 2 range, HSK–A63 SpindleMakino Super Geometric Intelligence SGI.5 SoftwareCustom Macro (1,100 variables)
Automatic Spindle Lubricant Temperature ControllerData Center (1 GB)Helical Interpolation
Tilt-Trunion Table (A & C axes)Part Program Storage (2 GB)Portable MPG
Integral Table (13.4” x 11.8”)Tool Offset Pairs (400 Total)Air Dryer
Machine temperature controlRigid TappingMaintenance Advice System
“Core Cooled” BallscrewsRigid Tap Retract Function Inch/Metric Selection
Support bearing & drive motorFive Axis Software:Fluorescent Worklight
A & C Axes DD MotorsTCP – Tool Center Point Control Programming Data Input (G10)
Vision BTSDFO – Rotary Table Dynamic Fixture OffsetSpindle Load Display
Automatic Lubrication Supply UnitTWP – Tilted Work Plane CommandSpindle Load Monitoring
Base CoolantThree Dimensional Cutter CompensationTool Life Management
Nozzle CoolantInversed Time FunctionDirect Spare Tool Selection
210psi Through Spindle CoolantProgram RestartDual Safety Check
Overhead Shower Coolant3-Dimensional Manual FeedSignal Light (3 layer)6
Right Discharge LUCCSpindle-Table Interference Prevention Function
Splash and Chip Shield
